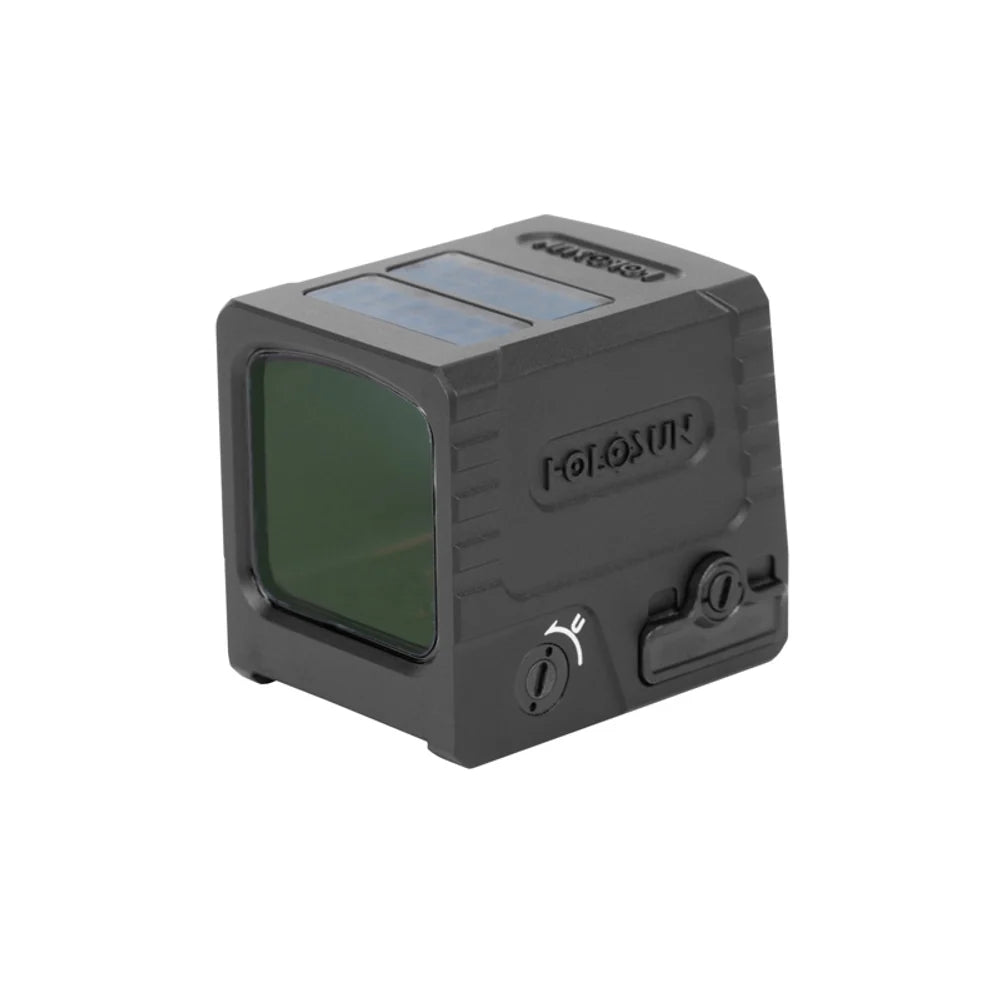

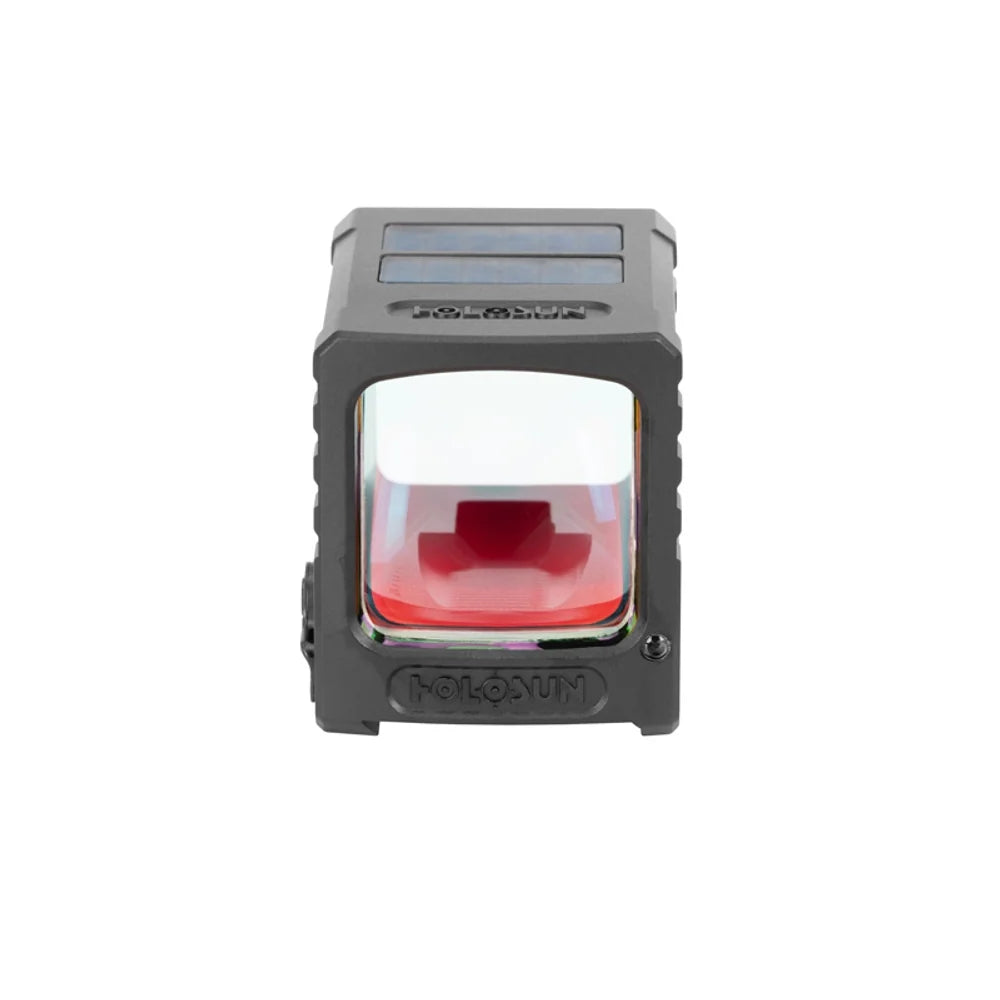

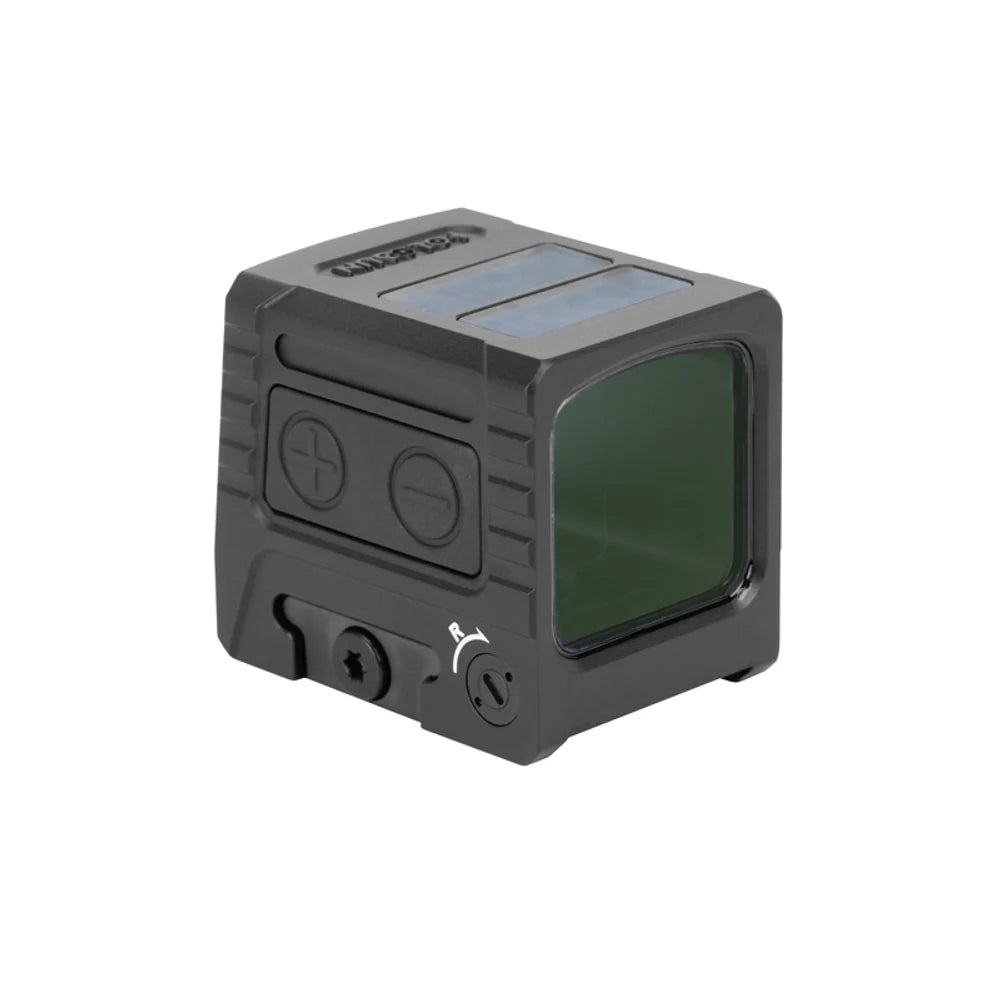

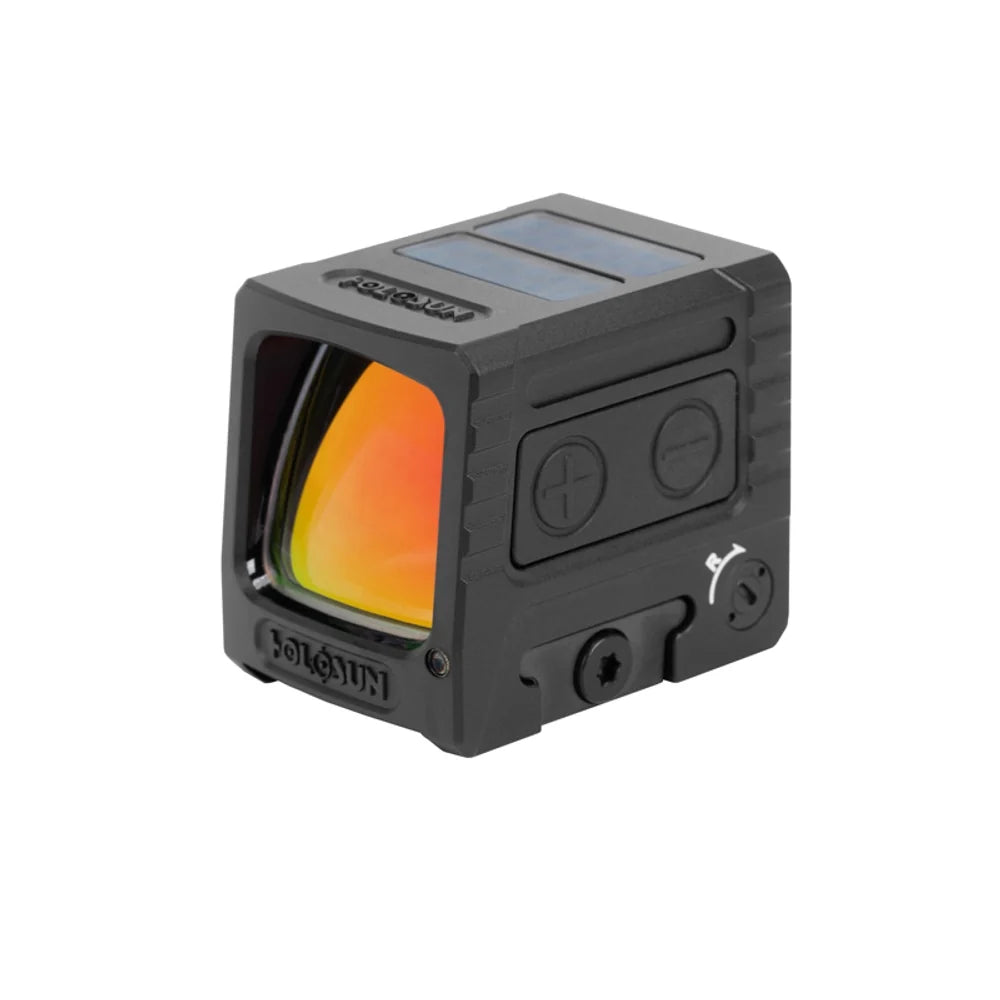

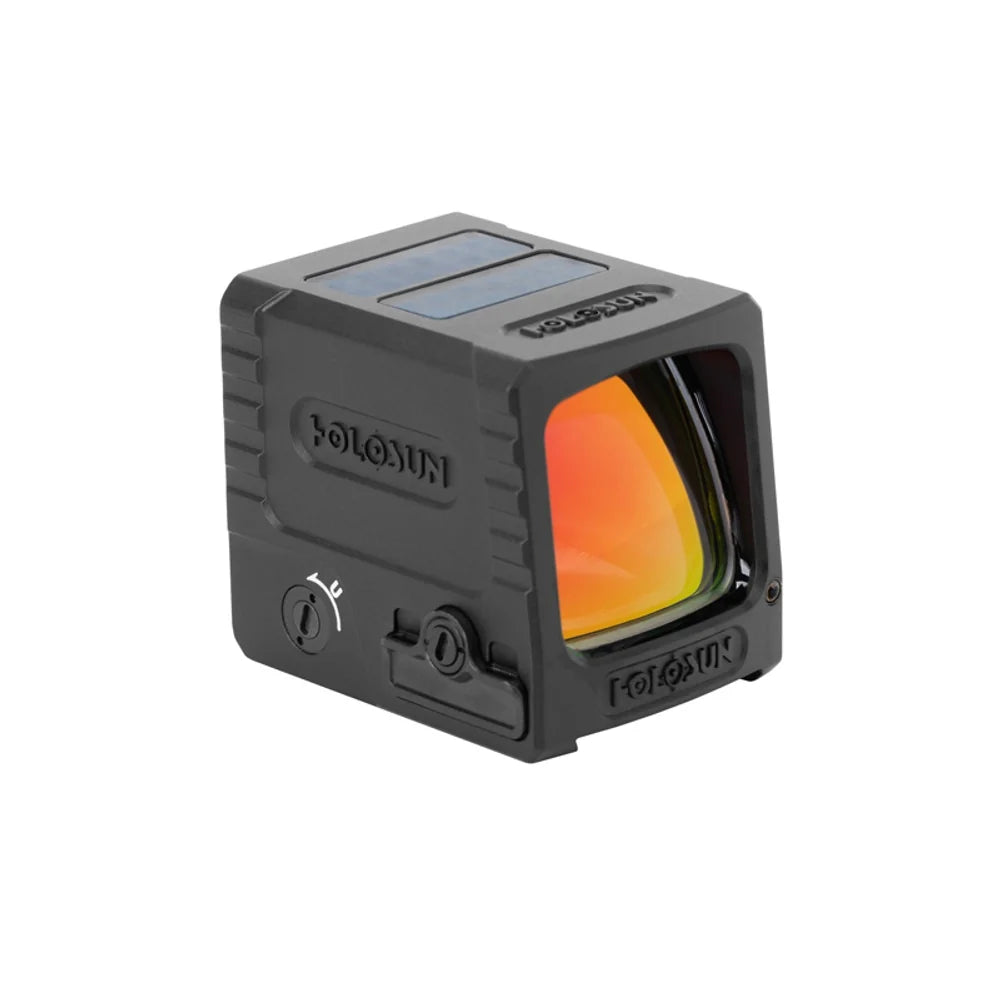

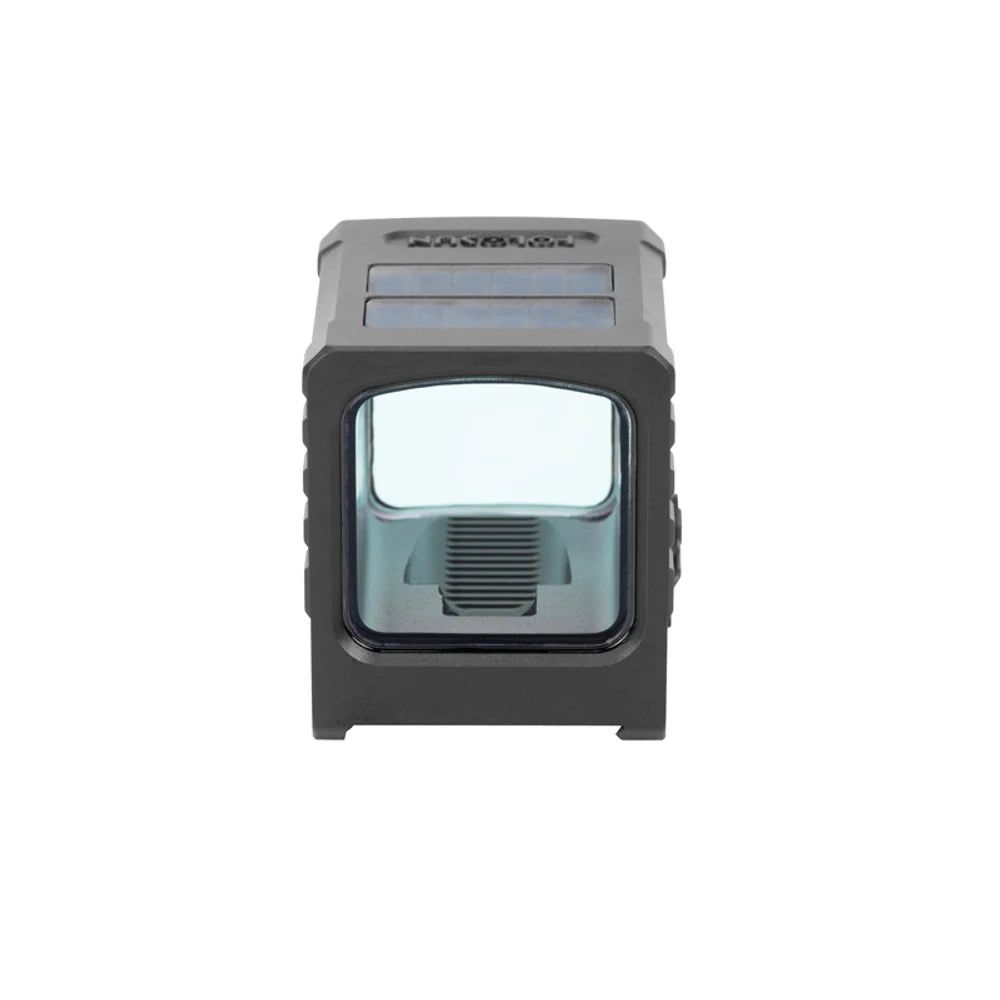

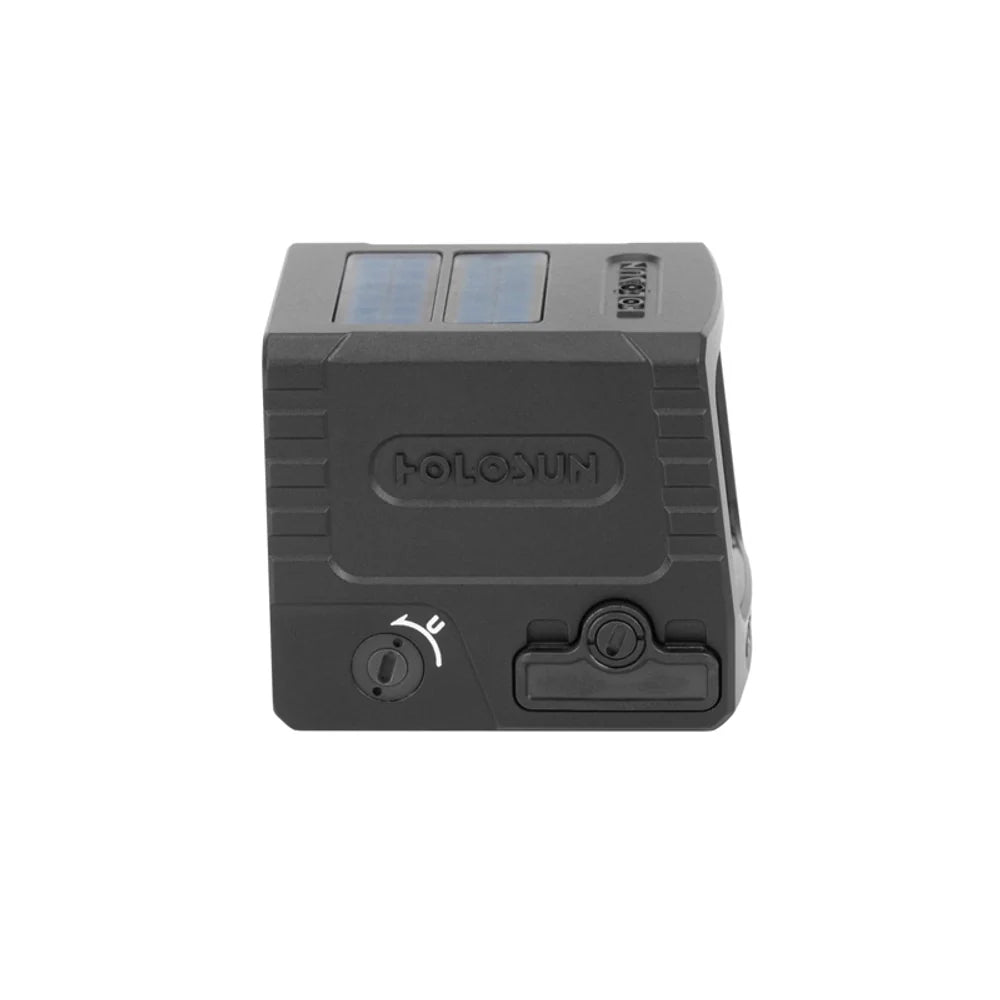

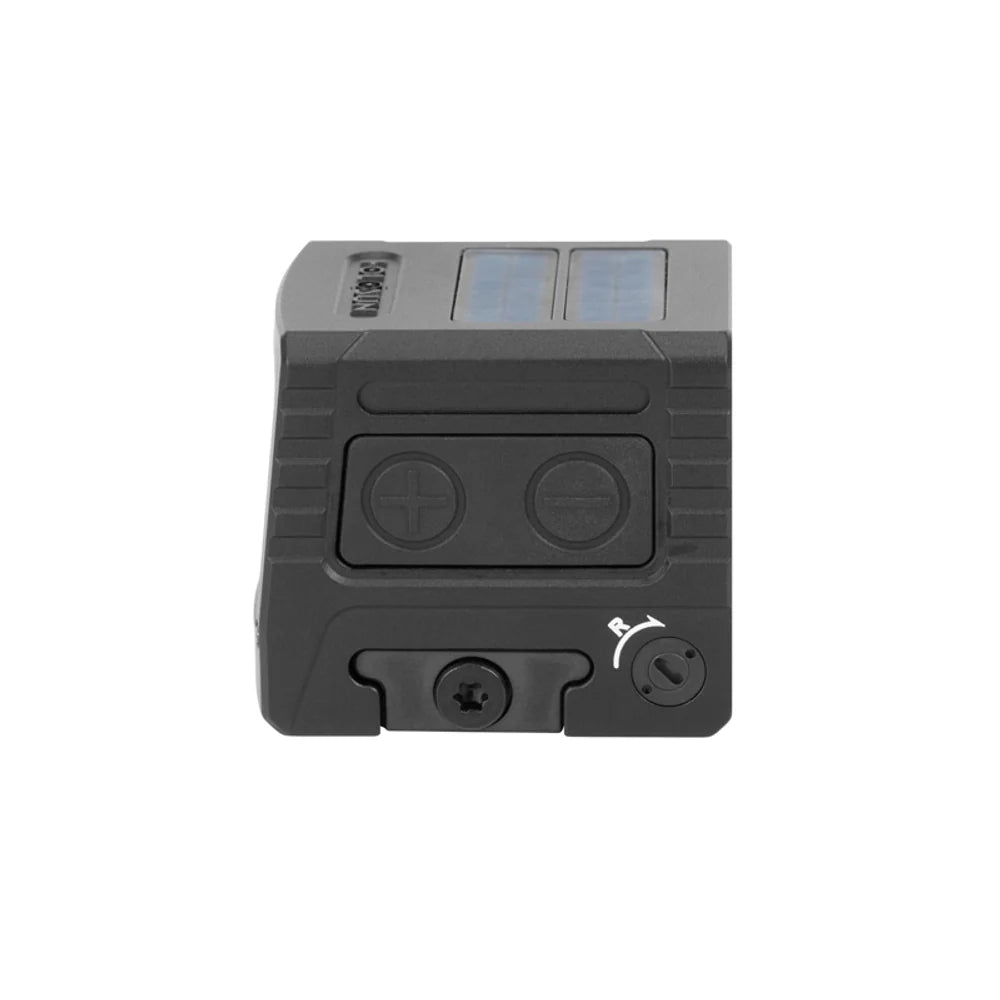

Holosun AEMS Macro [red]

This red dot uses the Holosun 509T footprint standard.

Essential info

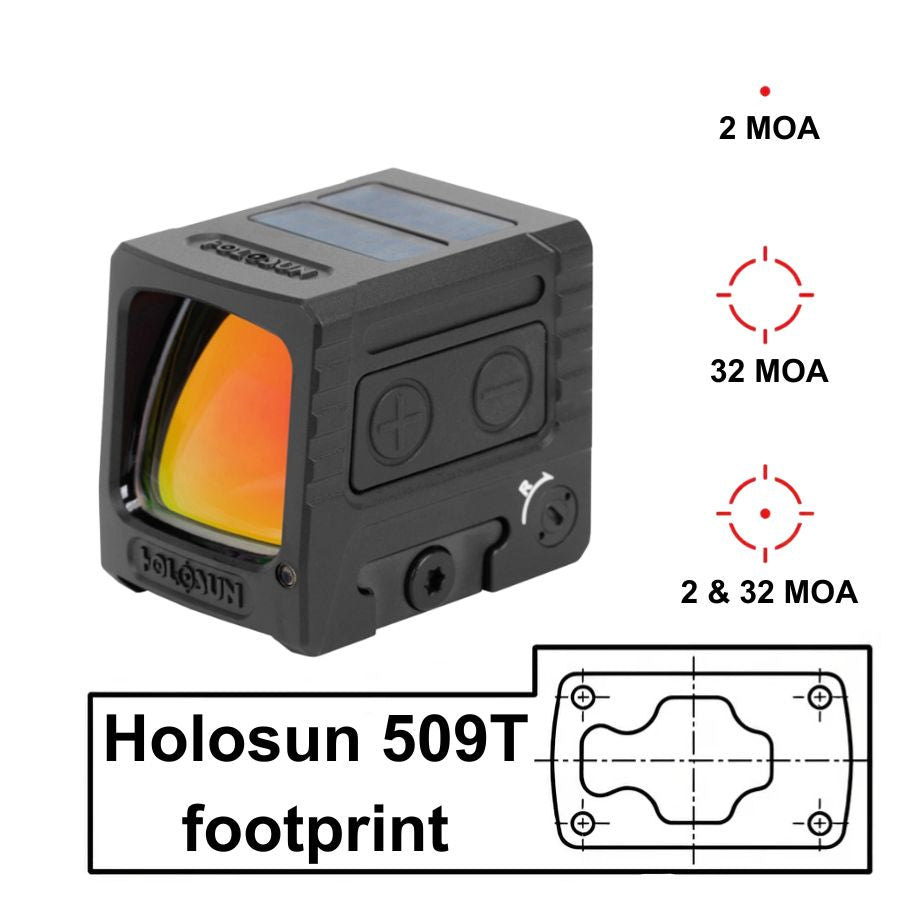

• Footprint standard: Holosun 509T footprint standard
• Reticle: 2 MOA dot & 32 MOA circle [red]
• Window size [height x width]: 22.9 x 22.9 mm [0.90 x 0.90"]
• Total dimensions [length x width x height]: 41.1 x 30.5 x 35.6 mm [1.62 x 1.2 x 1.4"]

Holosun AEMS-MACRO-RD brings the square AEMS sight picture to a pistol-footprint optic. It is a fully enclosed reflex sight on the Holosun 509T footprint, with a 0.9 x 0.9 inch window, a multi-reticle system and solar-assisted brightness.

A square window, not a slot

The 0.9 x 0.9 inch viewing window is as tall as it is wide, which is what makes the AEMS family easy to shoot: there is vertical room to find the dot on a fast draw and to keep tracking it through recoil, instead of hunting for it in a narrow letterbox.

509T footprint with an RMR plate in the box

The AEMS Macro mounts on the Holosun 509T footprint, and an RMR-to-509T adapter plate is included, so it also goes onto RMR-cut slides and RMR-pattern mounts.

One optic, three aiming styles

The Multi-Reticle System switches between a precise 2 MOA dot, a fast 32 MOA circle, or a combined circle-dot reticle. You choose precision or speed without changing optics.

Enclosed emitter, sealed against the weather

The fully enclosed emitter system keeps debris, moisture and environmental exposure away from the LED, which is what keeps the reticle on the glass in rain, snow and dust.

Smart brightness with solar backup

A forward-facing light sensor matches the reticle to ambient light, and an integrated solar panel supplements battery power to keep reticle performance consistent. Memory and Lockout Mode prevent accidental adjustments.

Fine adjustment for precise zeroing

Windage and elevation move in 0.5 MOA clicks across a ±50 MOA range, which is a finer increment than most pistol optics offer and makes a tight zero easier to reach.

Always ready, always efficient

Shake Awake powers the optic up the moment it senses movement and shuts it down when idle. With up to 100,000 hours on a CR1632 in a side-loading tray, the battery is a non-issue and swapping it never costs you your zero.

Key advantages

• Square 0.9 x 0.9 inch window for fast dot pickup
• Holosun 509T footprint, RMR-to-509T plate included
• Multi-Reticle System: dot, circle, or circle-dot
• Fully enclosed emitter design
• Automatic brightness with Solar Failsafe backup
• 0.5 MOA clicks with ±50 MOA travel
• Up to 100,000 hours on a CR1632
• 7075-T6 aluminium housing with hard anodized finish

Specification

• Magnification: 1x
• Reticle: 2 MOA Dot / 32 MOA Circle / Combined
• Reticle Color: Red
• Parallax: Free
• Eye Relief: Unlimited
• Lens Coating: Multi-Coated
• Power Source: Solar & Battery
• Battery Type: CR1632
• Battery Life: Up to 100,000 hours
• Brightness Settings: 12 (8 daylight + 4 night vision)
• Housing Material: 7075-T6 Aluminum
• Finish: Hard Anodized
• Adjustment per Click: 0.5 MOA
• Windage & Elevation Range: ±50 MOA
• Water Resistance: IPX8
• Vibration Resistance: 5000G
• Weight: approx. 71 g
