Estándar de huella Trijicon RMR

Trijicon RMR footprint standard

¿Cuál visores de punto rojo funcionará con el montaje Trijicon? ¿Podrás instalar el Holosun 507C en la misma placa que la mira Trijicon RMR visor de punto rojo? Cubrimos la compatibilidad completa de la huella en este artículo.

Compatibilidad de huella explicada

¿Qué significa una “ huella ”? El término huella se refiere a una estructura de los enchufes y los agujeros de los tornillos en la base del dispositivo óptico.

¿Y qué significa si las huellas son compatibles? Cada mira óptica tiene alguna base para el montaje. La base consiste en pasadores en varias posiciones y agujeros para tornillos utilizados para la fijación de la mira al montaje.

Si dos miras cualquiera usan la misma base para el montaje, decimos que comparten la misma huella. En este artículo mostramos qué visores de punto rojo comparten la misma huella.

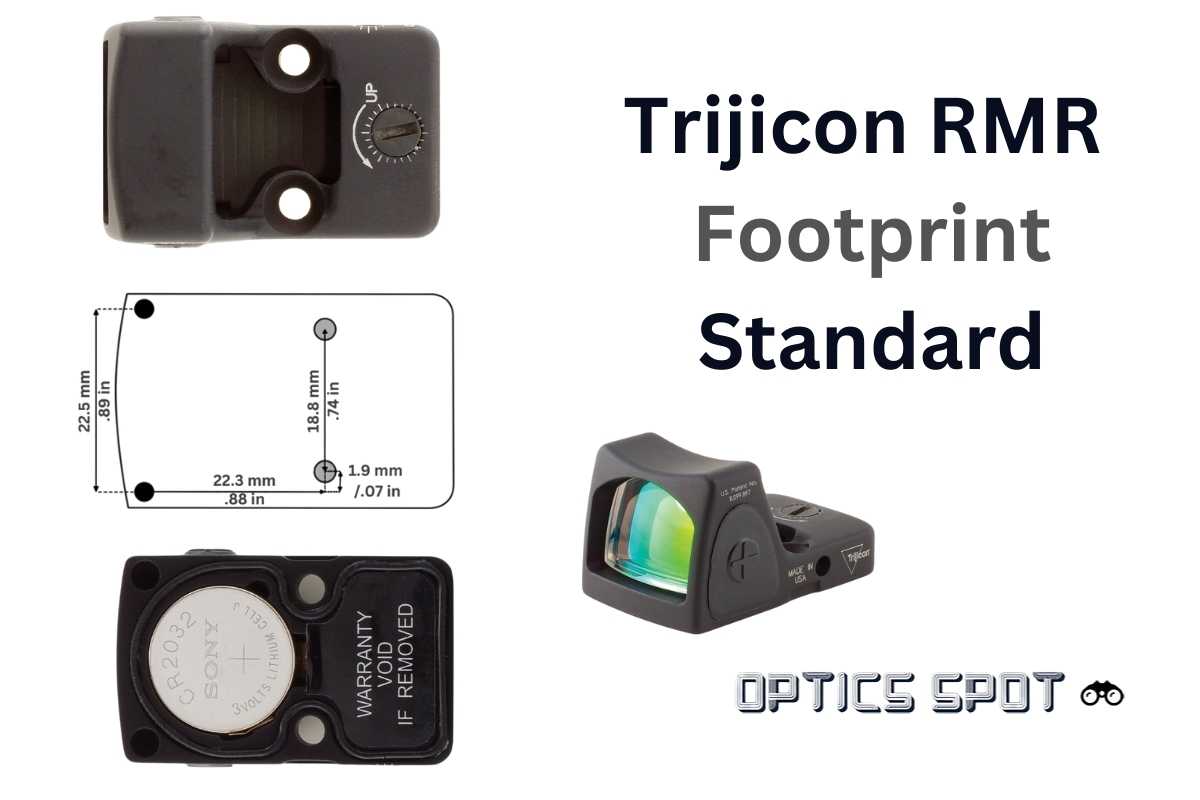

Patrón de huella Trijicon RMR

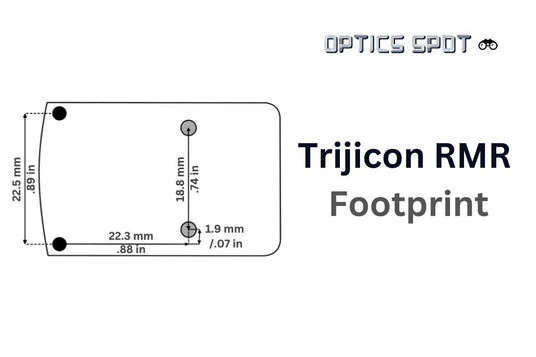

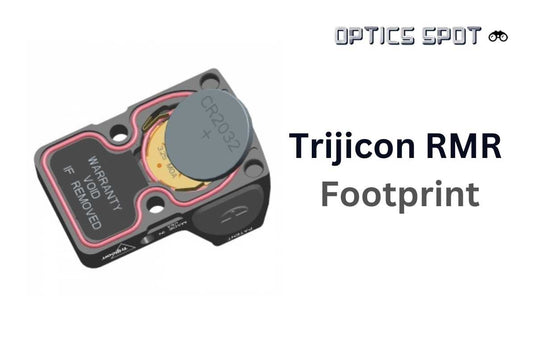

La huella RMR consiste en dos enchufes en la parte delantera y dos agujeros para tornillos en el medio de la mira.

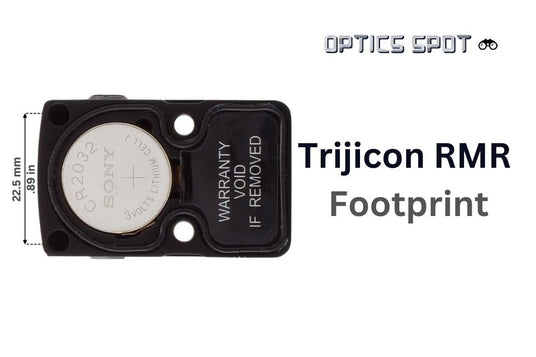

Los enchufes frontales están a 22,5mm / 0.89 pulgadas de distancia entre sí, cada uno posicionado en la esquina del frente de la mira. La posición de estos dos enchufes corresponde a la posición de los pines que están en una superficie de montaje de cualquier soporte para este estándar.

Los agujeros para tornillos están posicionados aproximadamente en el medio del dispositivo óptico. Estos funcionan para la fijación de la mira al soporte. Estos dos agujeros para tornillos están a 18,8mm / 0.74 pulgadas de distancia entre sí.

Los tornillos que se deben usar para estos agujeros siempre están incluidos en el paquete con la mira.

Compatible visores de punto rojo

RMR es una de las huellas más comunes en el mercado.

A continuación, puedes encontrar la lista completa de miras que funcionarán con la huella Trijicon.

Trijicon RMR standard

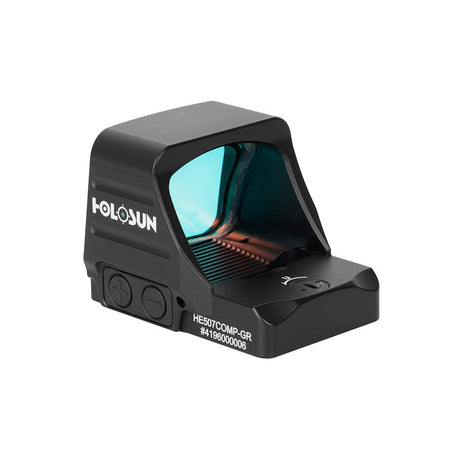

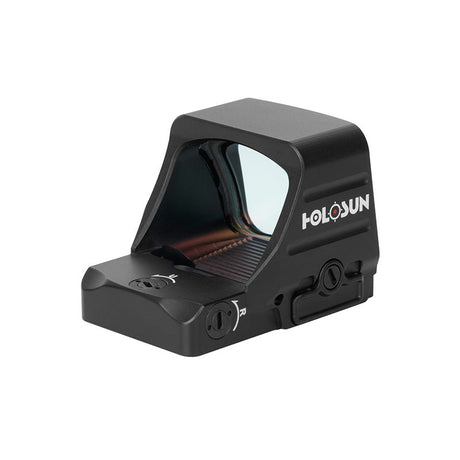

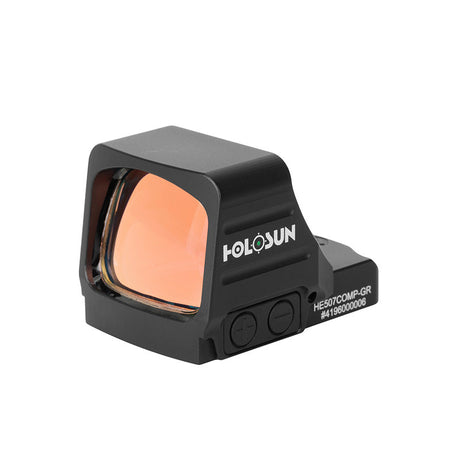

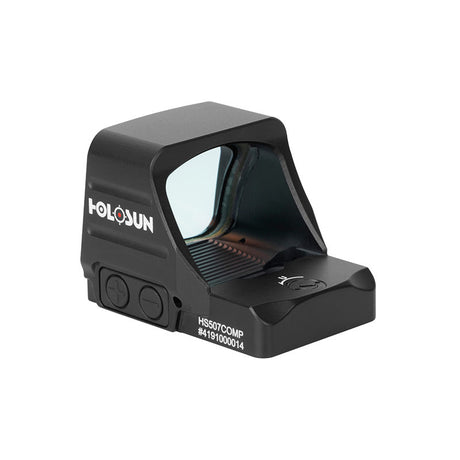

Visores de punto rojo con huella Trijicon RMR

Ver todo

Cómo montar visor de punto rojo con huella Trijicon RMR

Depende de qué dispositivo quieras montar.

Otros estándares de huella

Existen muchas bases diferentes para visor de punto rojo miras, pero las otras más comunes son las siguientes:
